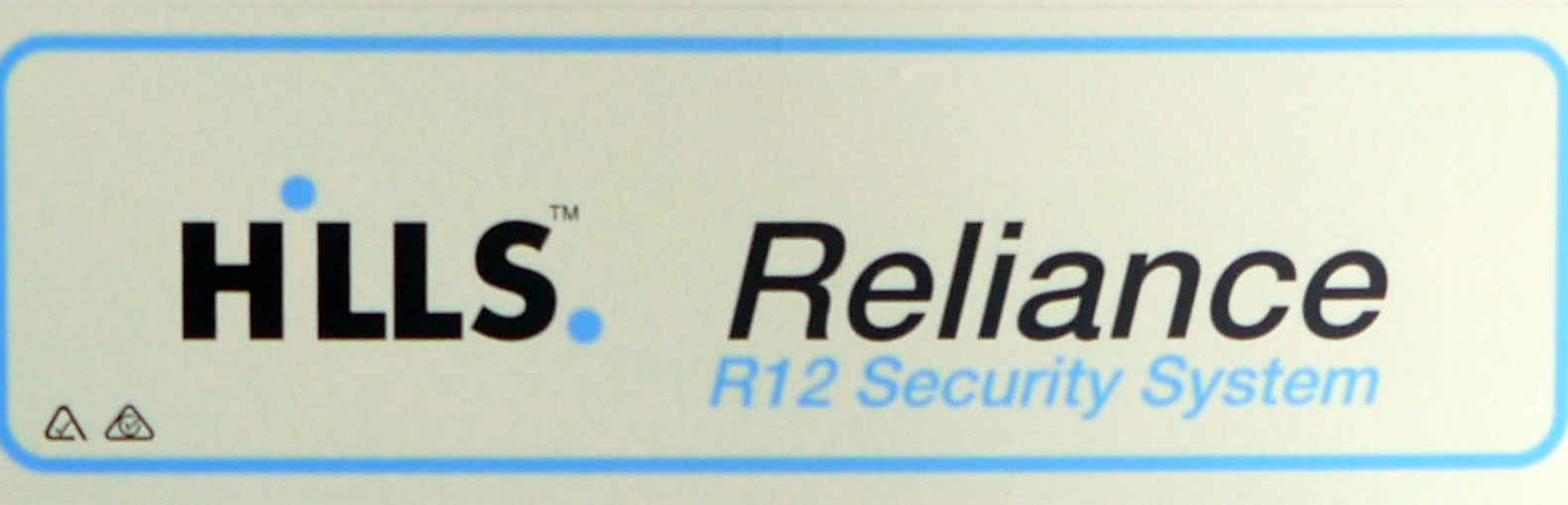

SHORT LIST USER MANUAL Hills R12 RELIANCE ALARM SYSTEM
How to ARM your Hills R12 alarm system from your keypad
Ensure the green READY light is lit (zone areas are sealed) close the doors and windows
Enter USER CODE eg. 6 9 3 9 or just press the "ON" button
Make sure that the red ARMED & Green ON light illuminates
If any of the zones are isolated, a sensor in that zone can give a mixed reading affecting the "READY" light (green light flashing). The security system will not arm if the "READY" light is not illuminated green. With the "READY" light on, you may arm the security system with your 4-digit Code. Each time a key is pressed on the keypad, a short tone (beep) will sound. If the code pad beeps three times after a code entry, it is an indication that the code has not been accepted. Press the [#] key (reset) and re-enter a valid code. The Hills R12 code pad sounder can be muted by re-entering your four digit code. When the security system has accepted a valid code, the red "ON" light will illuminate indicating that the system has been turned on. The user must leave within the exit delay time.
How to disarm your Hills R12 security alarm system
Enter USER CODE eg. [6] [9] [3] [9] if code is 6939 - keypad "ON" light goes OFF
When you return to your property the keypad will sound a continuous tone (beep) for the duration of the entry delay time. Enter a valid code within this entry time and the red "ON" light will turn OFF, and the tone will stop. The security system is now DISARMED. If a valid code is not entered before the end of the entry delay time, an alarm will occur.
How to change the ON/OFF code to your Hills R12 security system
Enter from keypad *5 followed by your 4-digit master code followed by [0][2] followed by new 4-digit user code then press [#] to save and exit programming
How to change the master code to your Hills R12 security system
1. Press [*] 5 followed by your existing master code eg. [6] [9] [3] [9] if code is 6939
2. enter the two digit user code location code to change Example: [0][1]
3. enter the new four-digit code number you would like eg. [2] [6] [2] [6] if code is 2626
4. press the [#] key to save new number and exit programming
How to set the date to your Hills security system with five easy steps
1. On your keypad Press the [*] [9] [6] keys for access to function 96
2. enter your master code Example: [1][2][3][4] if the master code is 1234 and Date is 23/10/2020 Friday
3. enter day of the Week code:[1]= Sunday [2]= Monday [3]= Tuesday [4]= Wednesday [5]= Thursday [6]= Friday [7]= Saturday
4. enter the two digit month code [0][1] = January to [1][0] October [1][2] December
5. enter the two digit day of the Month code Example: [0][1]= 1st [2][3]= 23rd [3][1]= 31st
6. finally enter the last two digits of the Year code. Example: for 2020 enter [2][0] followed by the [#] key
How to set the system clock (time) to your Hills security system
1. Press the [*] [9] [7] keys for access to function 97
2. enter the master code Example.[1][2][3][4] if the code is 1234
3. enter the hour code Example: for 7.40pm enter [1][9][4][0]
Why is my power light flashing on my Hills alarm system keypad?
The power light (red LED) on your Hills keypad will start flashing because this indicates that your battery to the panel is flat and now needs to be replaced. When this battery has been changed and reset, the power light on the code pad will now stop flashing indicating that the new battery is good.
Why is my service light lit "ON" to my Hills R12 alarm code pad?
The service light (amber LED) on your Hills R12 keypad lights up because indicates that your alarm system now require a service maintenance done.
If the service light is "ON" pressing the [*] star key followed by the [2] number two key to indicate the service condition. The LED or LED`S will illuminate indicating what service need attending to. Please refer to your alarm manual to locate the fault conditions that is causing this to occur.
Common faults to a Hills R12 service light "ON" being a flat battery, flat wireless sensor batteries, loss of zone supervision, communication line fail, fuse fault, loss of system date & time, expander troubles, zone fault, keypad trouble and siren trouble fault to name a few.
|
