How to STOP & FIX your HILLS beeping security system

Hills code pads emit a beeping sound because this indicates that the security system now requires a general service. The system is trying to tell you there is a fault issue that requires attention. If the mains AC power transformer is unplugged or the main back-up battery is disconnected or faulty the code pad red power light will now start flashing. If this is happening to you then the system may start beeping when you "ARM" or "DISARM" the DAS HILLS alarm system.

Hills alarm beeping mostly indicates a low battery, then you need to replace the battery for a new one.

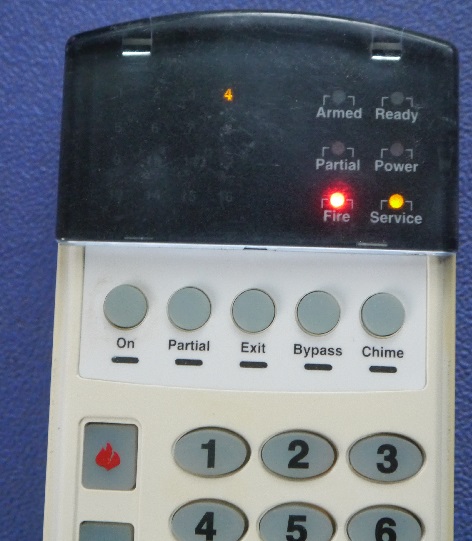

Hills alarm system keypad power flashing and service light indicator ON steady

A BEEPING CONDITION may sound from the keypad when the service light is lit yellow or when the power light is FLASHING requesting your attention that the security system now requires servicing as soon as possible.

12 reasons why my DAS Hills alarm system keypad is beeping:

• Defective zone tamper devices
• Loss of communication -failure to connect to monitoring control room or mobile phone
• Low battery in the main enclosure panel
• RF Radio device faulty or wireless low battery
• Faulty expander unit or spring tamper - most likely a broken or dislodged casing from the screw fittings to wall mount
• Power outage or power fault
• Zone system fault
• Defective tamper circuit - has a fault in the wiring
• Control panel cover open - the alarm system has a box tamper trouble beeping because the front pull down cover has been opened.
• Faulty control panel or keypad
• Siren trouble - the external siren is faulty due to condensation or open siren wiring
• Over current faulty - there is most likely a short circuit in the cabling or electronic devices

This fault-finding analysis function below to your Hills DAS alarm system is very helpful because it assists you to help fault find the reason why you have a Hills alarm beeping keypad including low battery

The service light will be “lit” if the security system requires service. If the service light is “on”,(lit yellow)
press the [*] key followed by the [2] key to investigate the service condition. One or more
zone lights will illuminate indicating what service(s) is required. Call your security technician immediately for these issues so they can be resolved. Below is the information of what each light means in a service condition.

Note: Power light flashing indicates a low battery in the main control panel
Key Sequence Operation

1. Enter keys [*] [2] and use the information below to identify the service condition.

   SYSTEM FAULT – If zone 1 is lit then press the [1] key again. The zone light(s) that is illuminated corresponds to
   the system fault(s) below:
   1 Over Current Fault
   2 Siren Trouble
   3 Box Tamper
   4 Expander Power
   5 Expander Low Battery
   6 Expander Box Tamper
   7 Expander Trouble
   8 Reserved

   Note: Faults 1 & 2 are global in nature and will affect all areas of a multi-area system.
   Press the [#] key to return to the 1 of 8 service lights.
   2 ZONE TAMPER – Press the [2] key and the zone light(s) will illuminate showing the
   zone(s) that is tampered. Press the [#] key to return to the 1 of 8 service lights.
   3 ZONE LOW BATTERY – Press the [3] key. The zone light(s) will illuminate showing
   which zone(s) has a low battery. This only applies to wireless zones. Press the [#] key to
   return to the 1 of 8 service lights.
   4 ZONE LOSS OF SUPERVISION – Press the [4] key and the zone light(s) will illuminate
   showing which zone(s) has loss of supervision. This only applies to wireless zones.
   Press [#] key to return to the 1 of 8 service lights.
   5 ZONE TROUBLE – Press the [5] key and the zone light(s) will illuminate showing which
   zone(s) has a trouble condition. Press the [#] key to return to the 1 of 8 service lights.
   6 TELEPHONE LINE TROUBLE/LINE CUT – There is telephone line trouble or the
   telephone line has been cut. The service light will remain lit until the telephone trouble
   clears and a user code is entered. Note: This fault is global in nature and will affect all
   areas of a multi-area system.
   7 FAILURE TO COMMUNICATE – There is a failure to communicate between your
   system and the central station. Note: This fault is global in nature and will affect all areas
   of a multi-area system.
   8 LOSS OF SYSTEM TIME – There has been a loss of power and your system clock
   needs to be reset. Instructions are on page 15. Note: This fault is global in nature and
   will affect all areas of a multi-area system.
   Exiting this function: To exit the service diagnostic mode – press the [#] key.

Another problem with a beeping code pad occurs when there is a wireless device low battery therefore a battery replacement maintenance will be required to stop the beeps.

If you move into a new home with an existing security system, you make have a beeping alarm system due to a flat battery because the power to the property has been switched OFF for a long period of time. please have it serviced straight away otherwise you it will continue beeping from code pad. This fault is very common and can be caused by a low battery condition. A beeping code pad can also persist due to power failures caused by electricity outages, storm damage or lightning strikes. In this case your burglar alarm may not stop beeping. Unplanned mains power outages with a low battery may cause an alarm beeping constantly. Over current faults caused by shorted cable faults may also start a beeping keypad. A telco fail, device fault or cut telephone line may start a beeping sound at the HILLS keypad

Please refer to your alarm manual for more help. Our friendly licensed team provide service in Melbourne. We repair HILLS security systems whether old or new. We will assign an expert technician to fix your alarm beeping keypad which are very common with older type security control panels.

After 3 years a typical backup battery in a device will be very weak. In this case you may also have a beeping code pad. System devices contain batteries that have to be replaced eventually. The beeping alarm code pad gives you a signal status when the battery level is low. In some cases, a low battery can trigger a loud siren. Loss of mains power may also be the cause as well as a power works in your area. The battery supplies back-up power during loss of mains can last for up to 20 hours. Wireless devices with a flat battery in a security device module, expander trouble can make a beeping keypad which will require battery replacement.

Smoke and Fire Detector Batteries

A battery-operated smoke detector with a flat battery also emits a single "chirp" sound once every 30 seconds, alerting users that the smoke detector battery is very weak. If you do not replace a fire alarm low battery this may sound continuously and can be very annoying. The low battery chirping comes on as a warning that battery needs immediate replacing. Important: Use only batteries recommended by your security company.

YOUR HILLS RELIANCE HOME SECURITY SYSTEM BEEPING INDICATES THERE IS A SYSTEM FAULT WAITING TO BE ADDRESSED FOR KEYPADS SUCH AS VERTEX TOUCHNAV VOICENAV ALPHA LCD LED

We can fix your beeping HILLS RELIANCE CODEPAD POWER LIGHT "ON", SERVICE LIGHT "ON"HILLS BEEPING ALARM CODEPAD | HILLS SERVICE LIGHT ON KEYPAD - ALARM CODEPAD REPLACEMENTS | SECURITY ALARM FALSE ALARMING INCLUDING DAS (DIRECT ALARM SUPPLIES) NETWORX
